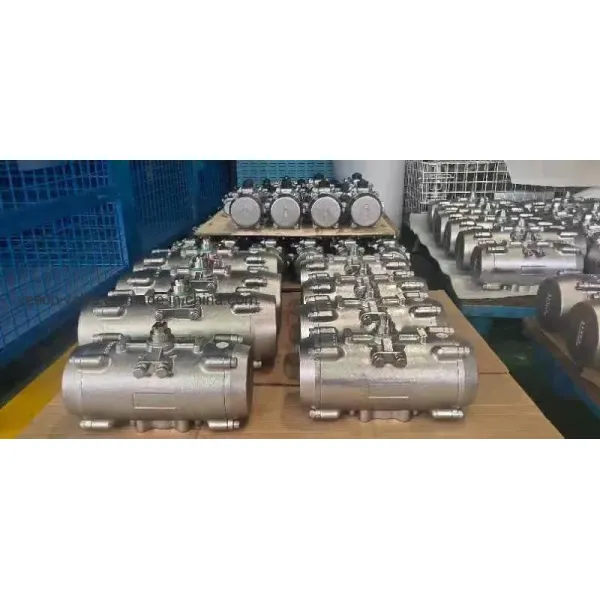

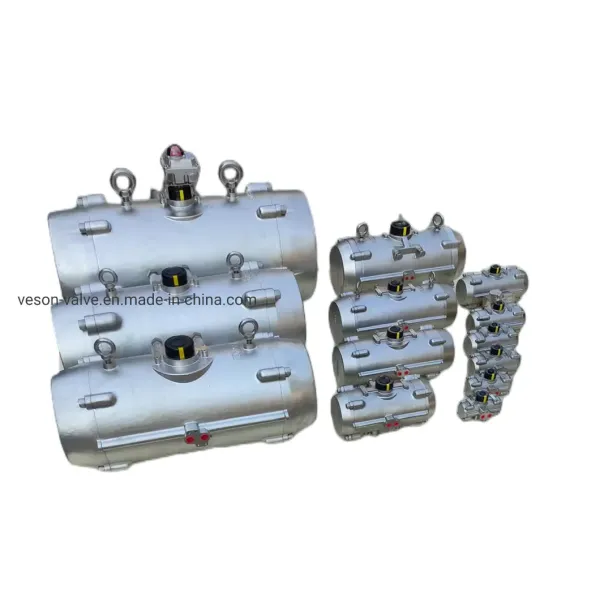

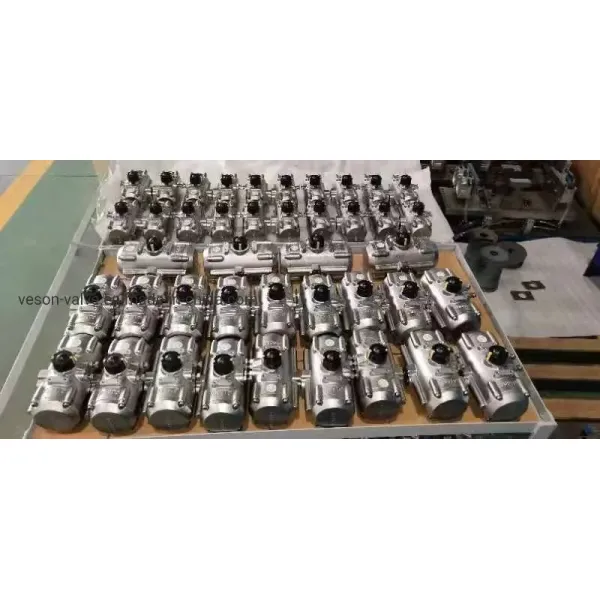

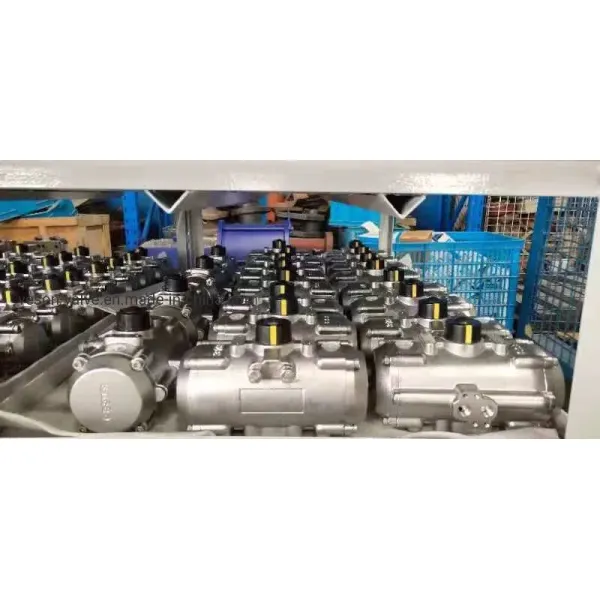

Stainless Steel Corrosion-Resistant Pneumatic Actuator with Hard Anodized Aluminum Rack Pinion Design

Model NO. : VS-052~VS-400

Structure : Piston Cylinder

Power : Pneumatic

Standard : Standard

Pressure Direction : Double-acting Cylinder

Double-Acting Cylinder Type : Common Cylinder

Special Cylinder Type : Number of Cylinders

Combination Cylinder Type : Pressurized Cylinder

Service : Custom Logo

Fuction : Corrosion -Resistant Actuator

Transport Package : Woodenbox

Specification : CE, SGS

Trademark : VESON

Origin : Shanghai China

HS Code : 84123900

Production Capacity : 50000PC / Y

MOQ : 1

Contact Now

Indicator

A position indicator with Namur mounting is standing on all VESON pneumatic actuator for mounting accessories.

Pinion

The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimension can be customized and as options, stainless steel and aluminum alloy are also available.

Actuator Body

The aluminum extrusion is hard anodized (over 30um) to protect against wear and corrosion while reducing piston friction to the minimum. Other options as Epoxy Coated and PTFE Coated are available.

End Cap

Epoxy coated (over 80um) die casting aluminum end caps provide maximum resistant potentially corrosive elements. Other treatments such as PTFE Coated are available.

Piston

The precisely balanced and hard anodized treatment (over 30um) die casting aluminum piston are fitted with high quality and guides. The twin rack and pinion design creates a constant torque output on all actuators.

Travel Adjustment

The standard adjustment is ±5ºin both the open and closed positions through easily accessible external adjustment bolts.

High Performance Springs

The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.

Bearings & Guides

The highly durable compound material provides high trust stability with minimum friction and long life.
Stainless Steel Corrosion-Resistant Pneumatic Actuator with Hard Anodized Aluminum Rack Pinion Design

Stainless Steel Corrosion-Resistant Pneumatic Actuator with Hard Anodized Aluminum Rack Pinion Design
